JK cutting plotter

Model:JK Specifications: 720&870&1100&1350
Volume: Weight:
Description:
JK cutting plotter

Machine detail:

Model

JK720

JK870

JK1100

JK1350





Max paper width

720mm

870mm

1100mm

1350mm





Max cutting width

630mm

780mm

1010mm

1260mm





Cutting speed

50-800mm/s

Cutting force

50-500g

Buffer capacity

1M

LCD

No

Yes

CPU

8-bit CPU

Strip of plotter

Plastic sheet

Drive

Stepping

Maximum media thickness

0.25mm(10mlls)

Maximum cutting speed

40cm/s((17ips) in al directions

Maximum acceleration

4m/s²

Maximum character matrix

Approx 5mm(0.2") high

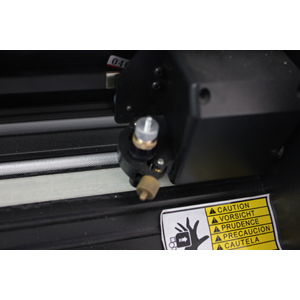

Blade type

Super steel (1.2mm)

Pen type

Water-base fibertip

Film type

Self-adhesive vinyl film, fluorescent film, reflective film, paper

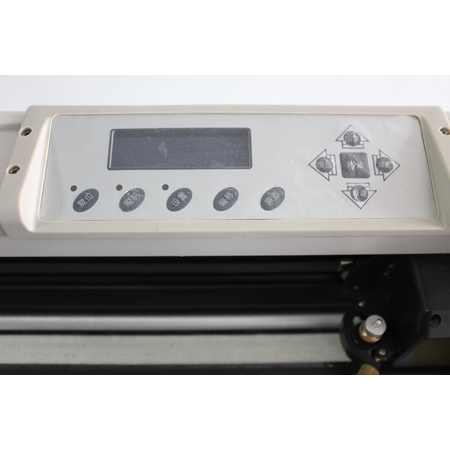

Display panel

No

8 digits*2 line LCD

Offset

0-1mm

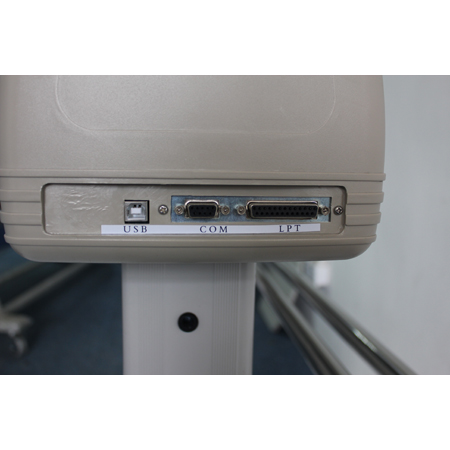

Interfaces

USB/Parallel serial

Power requirements

AC220V±10% or AC110V±10%

Power consumption

60W max

Repeatability

0.127mm

Mechanical resolution

0.0254mm/step

Commands set

DMPL

Environmental temperature

0-35℃

Environmental humidity

5%-65% (without condensation)



Description:

1. The appearance design of the patent, streamlined fuselage, carry the putting type control panel, easy to operate, elegant appearance.
2. Adopting new microstep to subdivide algorithms, being in highly cutting quality while cutting at a high speed, the curve is smooth and more evasive.
3. Software has the capacity to adjust the cutting precision to solve and prolong the inconsistent problems of size differently when all kinds of materials of malleability are cut.
4. Improve shock attenuation and subdue the sound device, reduce the noise further, but the power of the motor is not reduced.
5. Advanced industrial aluminium alloy fuselage, the surface is not worn and torn to fade through special-purpose processing.
6. Pairs of layering pairs of knife location, besides layering originally, set up half hob one, can is it is it carry heat of adhesive tape is it print paper, clothing pattern etc. to transfer to to have to cut.
7. Leather card special purpose interface software, can accept AUTOCAD, CORELDRAW file that software output, can establish partial is it compensate with the corner compensating to close, needn't carve characters software can carve characters directly specially.
8. Passing national security, performance and environment test in an all-round way, performance is more reliable.
